How Does a Treadmill Speed Sensor Work?

How Does a Treadmill Speed Sensor Work

There are several ways that a treadmill speed sensor can work. The most common is by using a reed switch. This type of switch uses a magnet to open and close the circuit, which in turn, sends a signal to the control panel to change the speed.

Another type of sensor uses an optical encoder. This type of sensor uses light to detect the movement of the belt and then sends a signal to the control panel.

Your treadmill’s speed sensor is a crucial component in its operation. This small device monitors the revolutions per minute (RPM) of the front roller and sends this information to the control board. The control board uses this data to adjust the belt speed and keep you moving at your desired pace.

If your speed sensor is not working properly, it can cause the treadmill to operate erratically or even shut down completely. There are two main types of speed sensors used on treadmills: hall effect sensors and optical sensors. Hall effect sensors use a magnetic field to detect the RPM of the front roller, while optical sensors use a light beam that is interrupted by a reflective stripe on the roller.

Both types of sensors are accurate and reliable, but hall effect sensors tend to be more durable and resistant to damage from dirt and debris. If your treadmill is not operating correctly, one possible issue is with the speed sensor. You can check if this is the problem by unplugging the treadmill from power and then removing the safety key.

With the key removed, try manually turning the front roller. If the belt does not move or moves erratically, then there could be an issue with the speed sensor. Try cleaning any dirt or debris off of both sides of the sensor before replacing it if necessary.

Treadmill speed sensor replacement


How Do I Fix the Sensor on My Treadmill?

If your treadmill is giving you an error code that indicates a problem with the speed sensor, there are a few things you can try to get it working again. First, make sure that the wires from the sensor are plugged into the correct ports on the control panel. If they’re not, that could be why the treadmill isn’t registering your speed correctly.

Next, check to see if the sensors themselves are dirty or covered in debris. If they are, wipe them down with a clean cloth and see if that fixes the problem. Sometimes all it takes is a good cleaning!

If neither of those solutions works, you may need to replace one or both of the sensors. You can usually find replacement sensors online or at your local fitness store. Once you have new sensors installed, your treadmill should be up and running like normal!

Do Treadmills Accurately Measure Speed?

When it comes to measuring speed, treadmills are pretty accurate. Most models these days use sensors to track your movement and calculate your speed. However, there are a few things that can affect the accuracy of the readings.

For example, if the belt is not level or aligned properly, it can cause the treadmill to miscalculate your speed. Also, if you’re not running in the center of the belt, that can also lead to inaccurate readings. Another thing to keep in mind is that different brands of treadmills may have slightly different ways of measuring speed.

So, if you’re comparing speeds between two different brands of machines, there may be a slight discrepancy. Overall, though, as long as the machine is properly calibrated and you’re running in the middle of the belt, treadmills are generally quite accurate when it comes to measuring speed.

Where is the Speed Sensor on My Treadmill?

The speed sensor on a treadmill is typically located on the front roller. If you are unsure of where your speed sensor is located, consult your treadmill’s owner’s manual. The speed sensor is used to monitor the rotational speed of the front roller.

This information is then used by the treadmill’s control panel to calculate your running speed and display it on the console.

How Do I Test a Speed Sensor?

A speed sensor is a device that measures the speed of an object. There are many different types of speed sensors, but the most common type is the Hall effect sensor. To test a speed sensor, you will need to first find a way to measure the speed of the object that the sensor is attached to.

This can be done by using a stopwatch or another type of timer. Once you have a way to measure the speed, you can then begin testing the sensor. To test the accuracy of the sensor, you will need to compare the readings from the sensor to the actual speed of the object.

To do this, you will need to take multiple readings from both the sensor and the timer. The more readings you take, the more accurate your results will be. Once you have your data, you can then begin analyzing it.

You should look at things like average error, maximum error, and standard deviation. These values will give you an idea of how accurate your sensor is.

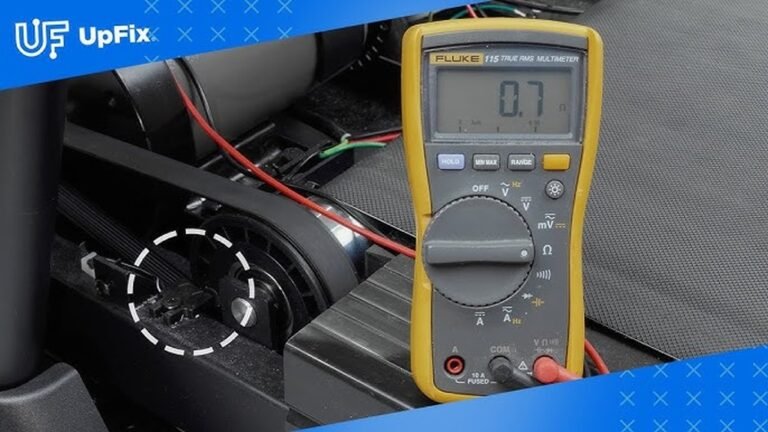

How to Test a Treadmill Speed Sensor With a Multimeter

If you have a treadmill at home, you may eventually need to test its speed sensor. This is a relatively easy process that can be done with a multimeter. Here’s how:

First, make sure the treadmill is unplugged from any power source. Then, locate the speed sensor on the treadmill. It will usually be near the front roller.

Once you’ve found the speed sensor, use your multimeter to test it for continuity. To do this, touch one of the multimeter leads to each of the two metal terminals on the speed sensor. If there is continuity between these terminals, then the speed sensor is working properly.

Treadmill Speed Sensor Test

A treadmill speed sensor test is a great way to determine if your speed sensor is working properly. By conducting this test, you can ensure that your treadmill is accurately tracking your speed and distance traveled. Here’s how to conduct a treadmill speed sensor test:

1. First, warm up by walking on the treadmill at a comfortable pace for about 5 minutes.

2. Then, increase the speed of the treadmill to a moderate level and jog for 1 minute. Be sure to keep track of the time so you can accurately measure your results.

3. After 1 minute, quickly stop the treadmill and step off. If the treadmill does not immediately come to a complete stop, then there may be an issue with your speed sensor. Make note of any discrepancies so you can discuss them with a technician if necessary.

How to Bypass Speed Sensor Treadmill

The speed sensor on a treadmill is used to monitor your speed and keep you within a safe range. If you want to bypass the speed sensor, there are a few things you can do. First, make sure that the treadmill is unplugged and that the safety key is removed.

Then, locate the speed sensor on the front of the treadmill deck. It will be a small black box with two wires coming out of it. Using a flathead screwdriver, carefully pry open the top of the box.

Inside, you will see a small magnet attached to a metal plate. Carefully remove the magnet and set it aside. With the magnet removed, you should be able to run at any speed without triggering the safety mechanism.

Just be careful not to go too fast or you could risk damaging your treadmill.

Treadmill Speed Sensor Problems

If you’re having trouble with your treadmill speed sensor, you’re not alone. Many people have this problem and it can be frustrating! Luckily, there are some things you can do to troubleshoot the issue.

First, make sure that the wires from the sensor are properly connected to the control panel. If they’re loose, tighten them up. If that doesn’t work, try disconnecting and reconnecting the wires.

If your treadmill still isn’t working properly, the next step is to check the sensor itself. Make sure that it’s clean and free of any debris that could be interfering with its operation. You can use a cotton swab or toothpick to clean out any dirt or dust that may be blocking the sensor.

If cleaning the sensor doesn’t fix the problem, it may be time to replace it. Fortunately, sensors are relatively inexpensive and easy to find at most hardware stores. Once you’ve replaced the sensor, your treadmill should be back up and running like new!

Treadmill Speed Sensor Magnet

If you’re like most people, you probably don’t think much about the treadmill speed sensor magnet. But this little component plays a vital role in ensuring that your treadmill runs smoothly and accurately. Here’s a closer look at how the speed sensor magnet works and why it’s so important.

The speed sensor magnet is located on the underside of the treadmill deck, near the front roller. Its purpose is to detect the rotation of the front roller and send a signal to the control panel accordingly. This information is then used to calculate your speed and distance travelled.

Without the speed sensor magnet, your treadmill would have no way of knowing how fast you’re going or how far you’ve travelled. This would make it very difficult to track your progress or set goals. In addition, without this feedback, the motor would have to work harder than necessary, which could shorten its lifespan.

So next time you jump on your treadmill for a workout, take a moment to appreciate the humble speed sensor magnet – it’s helping you stay on track (literally!) towards your fitness goals!

Speed Sensor Treadmill Location

Most people don’t know where the speed sensor on their treadmill is located. The speed sensor is usually located near the front roller of the treadmill. If your treadmill has a cover, you may need to remove the cover to access the speed sensor.

The speed sensor measures the rotations per minute of the front roller. This information is then sent to the control panel so that it can display your speed.

Treadmill Speed Sensor Price

Treadmill Speed Sensor – How to get the best price The treadmill speed sensor is a very important piece of equipment for any treadmill. It is what tells the machine how fast you are running and adjusts the speed of the belt accordingly.

Without it, you would have to manually adjust your speed every time you wanted to change it, which would be a pain! There are a few things to consider when purchasing a treadmill speed sensor. The first is quality.

You want to make sure that you purchase a sensor from a reputable company that makes high-quality products. The second thing to consider is price. sensors can range in price from around $30 up to $100 or more.

Obviously, you want to find the best deal possible! Here are a few tips for finding the best deals on treadmill speed sensors: -Check online retailers like Amazon or eBay.

They often have competitive prices and good selection.

-Look for sales or promotions at your local sporting goods stores. Sometimes they will offer discounts on certain items.

-Do some research and compare prices between different brands before making your purchase decision.

Treadmill Speed Sensor Replacement

If you’re like most people, you probably use your treadmill at home to get in a quick workout when time is tight. But what happens when your treadmill’s speed sensor breaks? Suddenly, that quick workout becomes a lot more difficult – and a lot less fun.

Replacing your treadmill’s speed sensor is not as difficult as it may seem, and it’s a great way to keep your machine running smoothly for years to come.

Here’s what you need to know about replacing a treadmill speed sensor:

1. Most importantly, make sure that the new speed sensor you purchase is compatible with your particular model of treadmill.

Not all sensors are created equal, so doing your research ahead of time will save you a lot of headaches down the road.

2. Once you have the new sensor, simply remove the old one by unscrewing it from its position on the underside of the machine. Be careful not to lose any of the small screws in the process!

3. Screw the new speed sensor into place and replace any covers or panels that were removed during installation. That’s it – you’re done!

4. If your treadmill still isn’t working properly after replacing the speed sensor, consult your owner’s manual or contact customer service for further troubleshooting help.


A treadmill speed sensor is a device that measures the speed of the treadmill belt as it rotates. The sensor is usually located near the front roller of the treadmill. The signal from the speed sensor is used by the control board to regulate the speed of the motor.

If the belt slows down, the control board will increase the speed of the motor to keep the belt moving at a constant speed. The treadmill speed sensor consists of a magnet and a reed switch. The magnet is attached to the front roller and spins with it.

As the magnet passes by, it activates the reed switch, which sends a signal to the control board. The control board uses this signal to determine how fast the belt is moving and adjusts accordingly.
